Capacity: 500 Kg/hr to 6000 Kg/hr

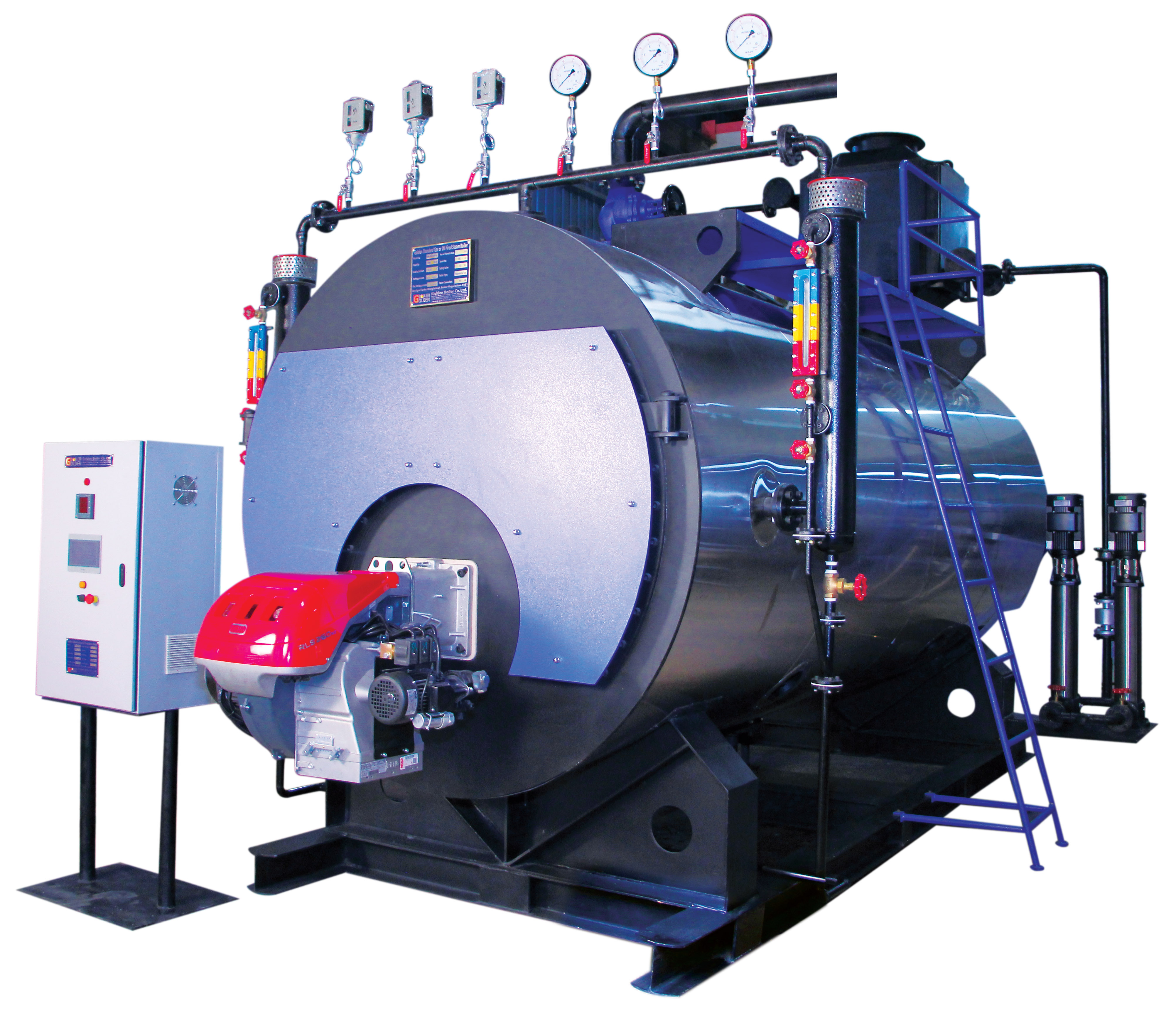

Type: Horizontal  Fired Tube

  • Government authorised boiler
  • Colour Sheet body
  • High Efficiency up to 90%
  • Safety, Reliability and Low Operating cost
  • Easy to installation and maintenance
  • Fully automatic Control panel board
  • 100% imported boiler grade steel (ASTM-SA-516, GR-70)
  • Environment-Friendly (Low Nox emission)
Model Capacity (Kg/Hr) Working Pressure (kg/cm2) Fuel Consumption Power connection (KW) Natural Gas Intel Size (inch) Boiler Dimension
N-Gas (ft3/hr) Oil (Ltr/hr) Length Width Height
GBC/HFT/500 500 10.5 1250 22.71 3.2 1 2590 1219 1676
GBC/HFT/750 750 10.5 1875 33.75 4 1.5 2890 1320 1820
GBC/HFT/1000 1000 10.5 2500 45.12 4 1.5 3352 1520 1930
GBC/HFT/1500 1500 10.5 3750 68.13 5.7 1.5 4300 1620 2082
GBC/HFT/2000 2000 10.5 5000 90.84 8.8 1.5 4700 1750 2186
GBC/HFT/3000 3000 10.5 7500 136.27 9.6 2 5000 1780 2186
GBC/HFT/4000 4000 10.5 10000 181.70 10.4 2.5 5000 2000 2400
GBC/HFT/5000 5000 10.5 12500 227.12 14 3 5500 2330 2580
GBC/HFT/6000 6000 10.5 15000 272.55 20 3 2600 2510 2780
