Welcome To Golden Boiler Company Ltd.

Golden Boiler Company Ltd. started in the year 2000 based in Dhaka, Bangladesh. We offer a wide range of energy-efficient, high-quality gas and oil-fired boilers for industrial heating and gas-fired, oil-fired, and combination oil/gas-fired boilers for commercial use, including in restaurants, hotels, Garments, Textile, Pharmaceuticals, and other commercial and industrial facilities.

According to the Minister of Industry in Bangladesh, In 2019, Golden Boiler Co. Ltd. Have obtained 1st position in Bangladesh for the total amount of Boiler supply. Golden Boiler Co. Ltd. is now in its NINETEEN YEAR of services in the boiler manufacturing industry. We serve a growing number of local and international customers who depend on superior, reliable boilers in their everyday operations in a variety of industries.

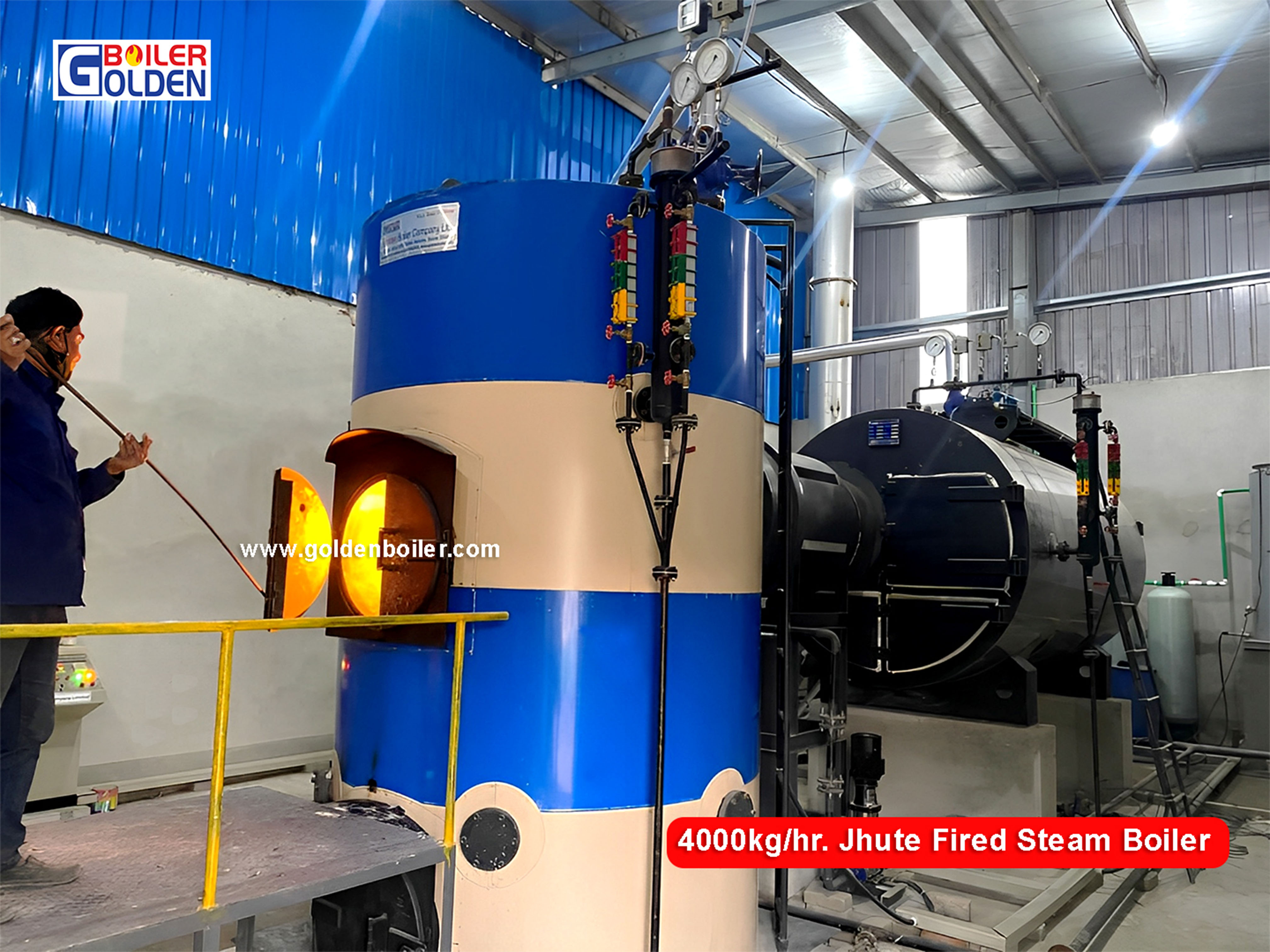

jute boiler

Our Product

Golden Standard Gas or Diesel Fired Vertical Tubeless Packaged Steam Boiler

Model Capacity (Kg/Hr) Working Pressure (kg/cm2) Fuel Consumption Power connection (KW) Natural Gas Intel Size (inch) Boiler Dimension
N-Gas (ft3/hr) Oil

(Ltr/hr)

 Length Width Height
GBC/VT/60 60 7 150 5.67 1.5 3/4 914 712 1524
GBC/VT/80 80 7 200 6.50 1.5 3/4 1330 906 1947
GBC/VT/100 100 7 250 7.57 1.5 1 1345 916 2017
GBC/VT/150 150 7 375 13.24 2 1 1430 976 2165
GBC/VT/200 200 7 500 17 2 1 1477 1017 2332
GBC/VT/250 250 7 625 18.17 2.2 1 1520 1020 2350
GBC/VT/300 300 7 750 18.92 2.5 1.25 1586 1002 2400
GBC/VT/350 350 7 875 22.71 2.5 1.25 1593 1150 2480
GBC/VT/500 500 7 1250 28.39 2.5 1.5 1730 1264 2590
GBC/VT/750 750 7 1875 45.03 2.5 1.5 1730 1264 2590
GBC/VT/1000 1000 7 2500 56.78 3 1.5 1778 1524 2690
Read more

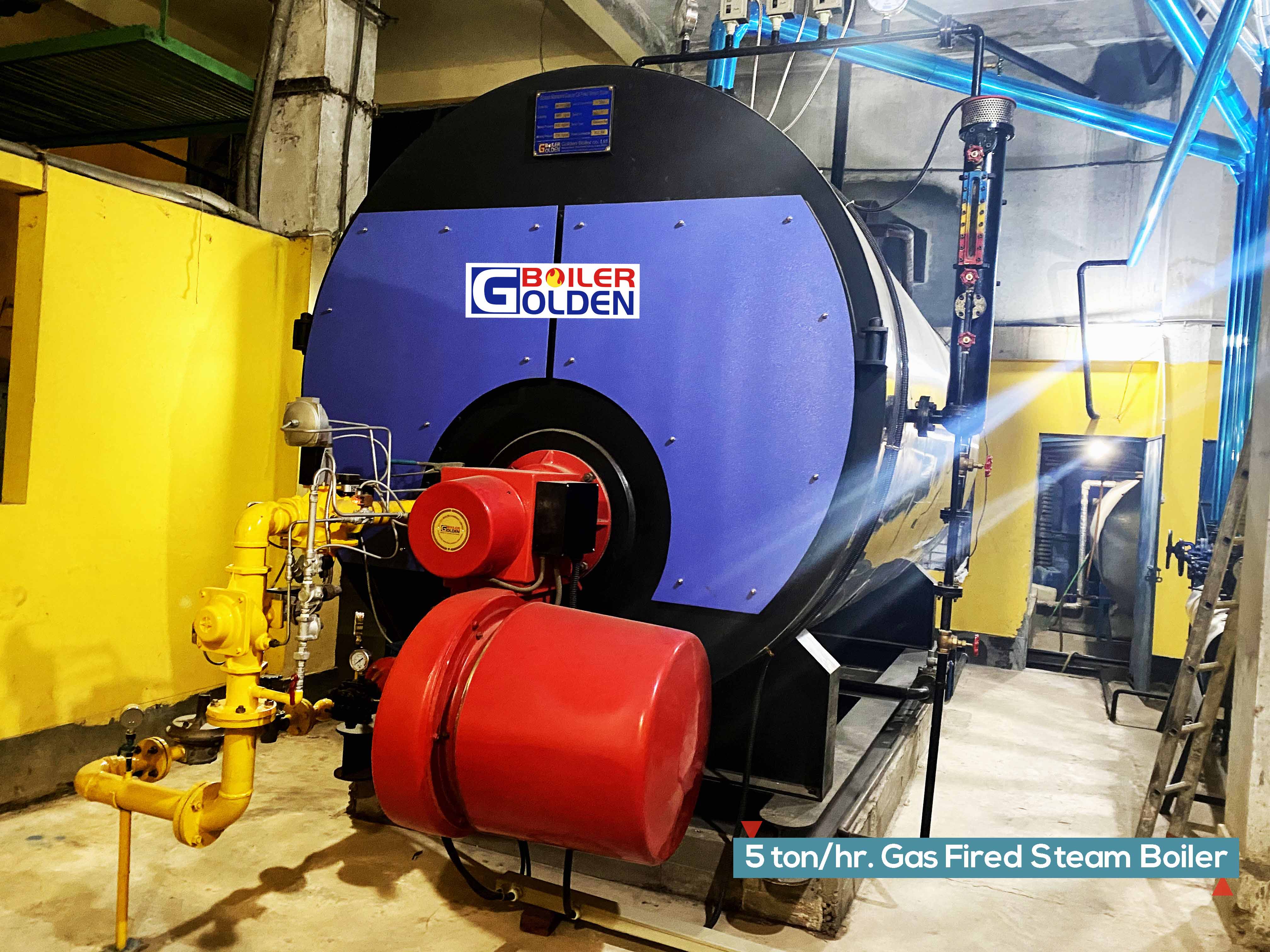

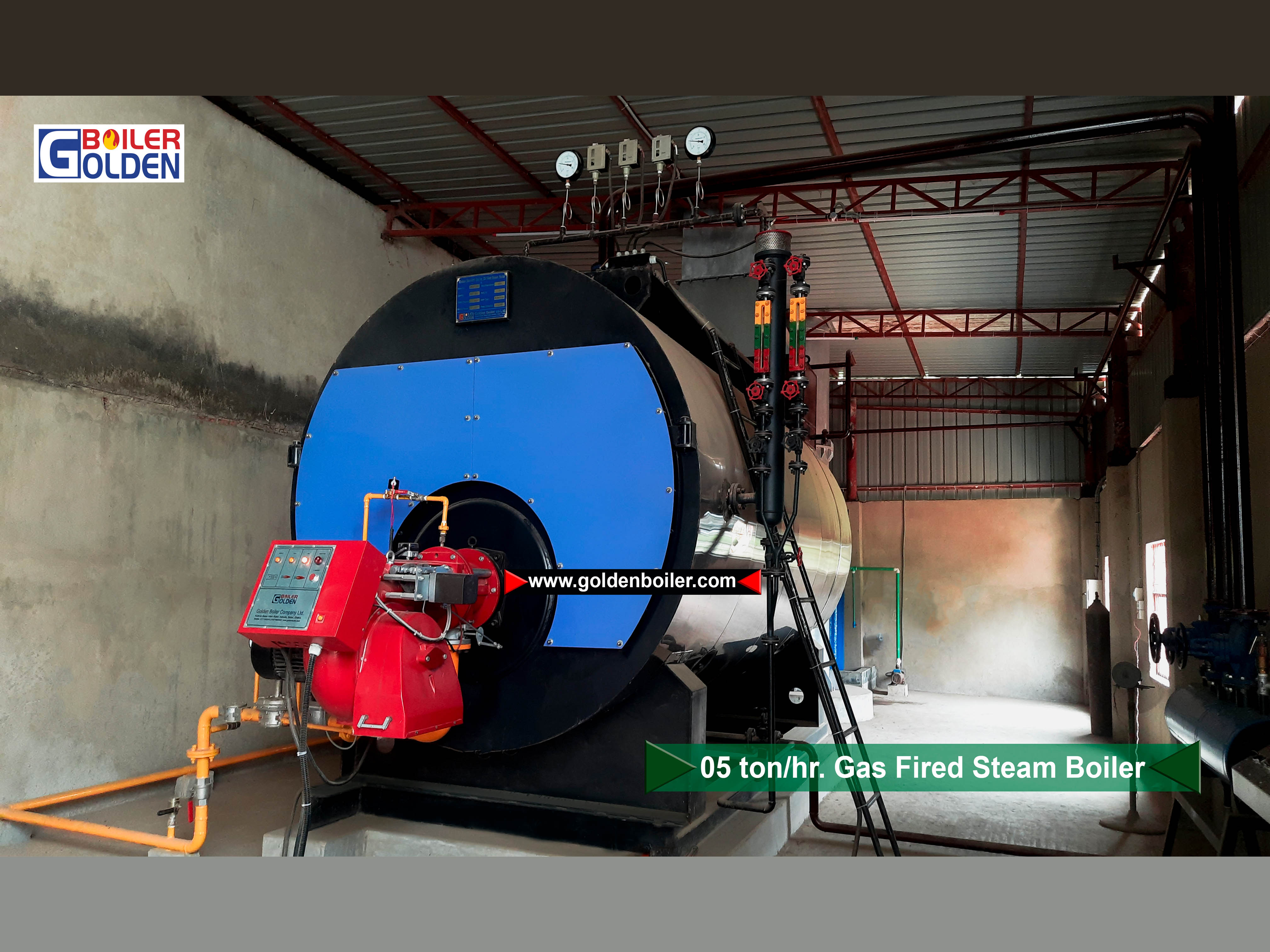

Horizontal High Quality Three Pass Gas or Oil Fired Steam Boiler

Model Capacity (Kg/Hr) Working Pressure (kg/cm2) Fuel Consumption Power connection (KW) Natural Gas Intel Size (inch) Boiler Dimension
N-Gas (ft3/hr) Oil (Ltr/hr) Length Width Height
GBC/HFT/500 500 10.5 1250 22.71 3.2 1 2590 1219 1676
GBC/HFT/750 750 10.5 1875 33.75 4 1.5 2890 1320 1820
GBC/HFT/1000 1000 10.5 2500 45.12 4 1.5 3352 1520 1930
GBC/HFT/1500 1500 10.5 3750 68.13 5.7 1.5 4300 1620 2082
GBC/HFT/2000 2000 10.5 5000 90.84 8.8 1.5 4700 1750 2186
GBC/HFT/3000 3000 10.5 7500 136.27 9.6 2 5000 1780 2186
GBC/HFT/4000 4000 10.5 10000 181.70 10.4 2.5 5000 2000 2400
GBC/HFT/5000 5000 10.5 12500 227.12 14 3 5500 2330 2580
GBC/HFT/6000 6000 10.5 15000 272.55 20 3 2600 2510 2780
Read more

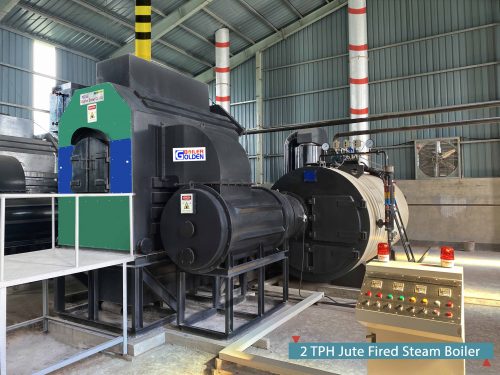

External Furnace Wastage (Jhut) Fired Horizontal Steam Boiler

Model Capacity (Kg/Hr) Working Pressure (kg/cm2) Power Connection (KW) Boiler Dimension (mm)
Length Width Height
GBC/EF/1000 1000 10.5 10 3200 2320 2200
GBC/EF/1500 1500 10.5 15 4220 1800 2480
GBC/EF/2000 2000 10.5 25 4230 2300 2500
GBC/EF/3000 3000 10.5 30 4860 3608 3950
GBC/EF/5000 5000 10.5 35 5420 3880 4200
Read more

Husk Fired Steam Boiler

Model Capacity (Kg/Hr) Working Pressure (kg/cm2) Fuel Consumption Power connection (KW) Natural Gas Intel Size (inch) Boiler Dimension
N-Gas (ft3/hr) Oil (Ltr/hr) Length Width Height
GBC/HFT/500 500 10.5 1250 22.71 3.2 1 2590 1219 1676
GBC/HFT/750 750 10.5 1875 33.75 4 1.5 2890 1320 1820
GBC/HFT/1000 1000 10.5 2500 45.12 4 1.5 3352 1520 1930
GBC/HFT/1500 1500 10.5 3750 68.13 5.7 1.5 4300 1620 2082
GBC/HFT/2000 2000 10.5 5000 90.84 8.8 1.5 4700 1750 2186
GBC/HFT/3000 3000 10.5 7500 136.27 9.6 2 5000 1780 2186
GBC/HFT/4000 4000 10.5 10000 181.70 10.4 2.5 5000 2000 2400
GBC/HFT/5000 5000 10.5 12500 227.12 14 3 5500 2330 2580
GBC/HFT/6000 6000 10.5 15000 272.55 20 3 2600 2510 2780
Read more

Auto Electric Boiler

Model Capacity (Kg/hr) Working Pressure(Psi) Power Connection (Kw) Boiler Diameter (mm) Boiler Height (mm)
GBC/ELC/40 40 100 14 304 762
GBC/ELC/60 60 100 14 304 914
GBC/ELC/80 80 100 28 355 1219
GBC/ELC/100 100 100 42 355 1219
Read more

Water Softener

Model No. Capacity Working Pressure Vessel Size Pipe Input
Min-Max. Kg/cm2 Dia. x Length Inch
MWS- 100   80-100 5.5 8 x 44 3/4
MWS- 200 100-200 5.5 10 x 54 3/4
MWS- 300  200-300 5.5 13 x 54 3/4
MWS- 400  300-400 5.5 14 x 65 1
MWS- 500 400-500 5.5 16 x 65 1
MWS- 1000 500-1000 5.5 21 x 72 1
MWS- 1500 1000-1500 5.5 24 x 72 1
MWS- 2000 1500-2000 5.5 30 x 72 1
MWS- 3000 2000-3000 5.5 36 x 72 1 1/4
MWS- 4000 3000-4000 5.5 48 x 72 1 1/4
MWS- 5000 4000-5000 5.5 63 x 64 1 1/4
MWS- 6000 5000-6000 5.5 20 x72 2
MWS- 8000 6000-8000 5.5 24 x 72 2
Note: Above Specifications are based on up to 700 ppm
-Contact our engineering team for your custom sizing and flow rate requirements.
Read more

Vacuuming Iron Table

Model Bed Size (Inch) Power Connect to Iron (KW) Voltage Electric Motor (RPM) Dimension
L W H
MVT-36 48″x 36″ 1.2 440 1400 56″ 36″ 32″
MVT-30 48″x 30″ 1.2 440 1400 56″ 30″ 32″
MVT-26  60″x 36″ 1.2 440 1400 60″ 36″ 32″
Read more

Vacuuming Iron Table

Model Bed Size (Inch) Power Connect to Iron (KW) Voltage Electric Motor (RPM) Dimension
L W H
MVT-26 48″x 26″ 1.25 440 1400 56″ 34″ 40″
MVT-27 32″x 26″ 1.25 440 1400 60″ 27″ 40″
Read more

Thread Cleaning Machine

Model Height (Inch) Width (Inch) Depth (Inch) Electric Motor HP Voltage Electric Motor RPM
MTS-36 54 28 36 7.5 380/440 1400
MTS-30 54 28 36 5.5 380/440 1400
Read more

CNG Riser

Model Capacity (m3) Input Size (Inch) Output Size (Inch) Power (KW) Over All Dimension HxWxD(Inch)
MRCU-7 7 3/8 1 1 32x18x32
MRCU-21 21 3/8 1 1 30x18x24
MRCU-35 35 3/8 1 1 30x18x24
MRCU-70 70 1/4 1 1 30x18x24
MRCU-105 105 5/8 1 1/2 1 36x20x30
MRCU-140 140 5/8 1 1/2 1 30x18x24
MRCU-175 175 5/8 1 1/2 1 30x18x24
MRCU-210 210 5/8 1 1/2 1 30x18x24
MRCU-280 280 5/8 1 1/2 1 30x18x24
MRCU-350 350 5/8 1 1/2 1 30x18x24
Read more

Dryer

Model Drum Size Inch Capacity Spin Speed (rpm) Motor (KW)
Kg. Lbs
MD-80 Φ 36×38 36 80 36 1.1
MD-100 Φ 38×40 45 100 36 1.1
MD-150 Φ 48×40 70 150 34 1.5
MD-200 Φ 57×42 92 200 28 2.2
MD-300 Φ 63×48 136 300 22 4
Read more

Hydro Extractor

Model Inner Drum Size Dry Weight Capacity Spin Speed Motor KW Dimension (mm)
MH-24 24×8.5 65 1270 2.2 1330x1000x780
MH-30 30×12 100 1015 4 1460x1150x700
MH-36 36×15 160 1008 5.5 1860x1400x868
MH-42 42×16 245 800 7.5 2180x1580x888
Read more

Washing Machine MW-80-150

Model MW-150 MW-100 MW-80
Dry Weight Kg. 68 45 36
Lbs. 150 100 80
Drum Size MM 966×1066 900×980 800×980
Inch 38×42 36×39 32×39
Spin Speed RPM 38 38 38
Motor KW. 3.6 2.2 2.2
Dimension LxWxH. 1850X1350X1500 1600X1300X145 1800X1200X1350
Net Weight Kg. 650 600 550
Read more

Washing Machine MW-250-1000

Model MW-1000 MW-550 MW-450 MW-250
Dry Weight Kg. 450 250 210 155
Lbs. 1000 550 450 250
Drum Size MM 1500×3600 1220×2220 1100×2220 980×1610
Inch 60×144 48×90 44×88 39×64
Spin Speed RPM 28 37 38 38
Motor KW. 18 7.5 5.5 4
Dimension LxWxH. 4737X2175X2262 3200X1600X2100 3100X1500X190  2470X1600X1600
Net Weight Kg. 2300 1700 1500 800
Read more

Our Service

AFTER-SALES SERVICE & MAINTENANCE

Certified and approved by the Boiler Inspection authority of the Goverment of People’s Republic of Bangladesh

null

INSTALLATION & REPAIRING

Certified and approved by the Boiler Inspection authority of the Goverment of People’s Republic of Bangladesh

ENGINEERING DESIGN

Certified and approved by the Boiler Inspection authority of the Goverment of People’s Republic of Bangladesh

null

ENGINEERING FABRICATION

Certified and approved by the Boiler Inspection authority of the Goverment of People’s Republic of Bangladesh

INDUSTRIAL SERVICES

Certified and approved by the Boiler Inspection authority of the Goverment of People’s Republic of Bangladesh

WASHING PLANT INSTALLATION

Certified and approved by the Boiler Inspection authority of the Goverment of People’s Republic of Bangladesh

Our Specialties

Expert Engineering Team

Advanced Technology

Ready Stock Boiler

Delivery On Time

After Sales Service

Customer Support

Why Us

You can depend on Golden Boilers Company Ltd. for reliable performance because of our quality and unique application to the needs of each of our customers. We build each boiler to meet the conditions in which it will operate, and our experienced engineers and employees apply their skills in every step of the process, from design and manufacture to installation and service. Our quality control system assures you that we meet all code requirements and project specifications.
